E303 Technical Specification
Main parameter | Type | Parameter |
Material viscosity | Rotary viscosity | 0-3000000 mpa.s |
LSR Material | Standard package | 200L/20L |
Mixing ratio | -- | 1:1 |
Mixing deviation | Automatically balanced | 1% |
Injecting precision (A+B) | -- | 1% |
AB pumping pressure (outlet of pump body) | 3.8KW*2 servo hydraulic | 0-20Mpa |
Output pressure (outlet of static mixer） | 7.5KW servo hydraulic | 0-60Mpa |
Output speed in theory (outlet of static mixer) | -- | 0-3.5kg/min(depend on material viscosity) |
Rated total power | Hydraulic station | 15.3kw |
Maximum air consuming | -- | 5 Ft^3/min |
Weight | -- | 1.9t |
machine dimension L×W×H | -- | 2000mmx1250mmx2000mm |

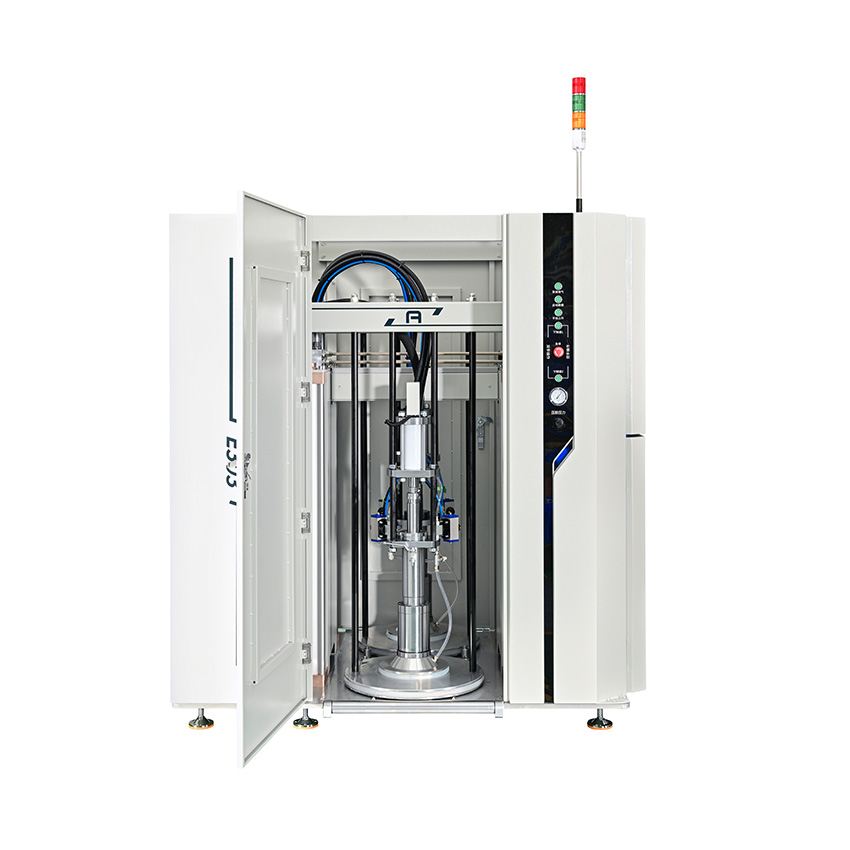

E303 Machine Description
1. Closed loop control system, A&B balance automatically.
2. A/B pumping system, injection system adopts three independent servo hydraulic systems.
3. Continuous injection device provides more stable injection force and higher precision ratio control.
4. 15.6 inch touch screen, easy to operate.
5. It has the function of quantitative injection and segmented injection.
6. Material utilization rate 99%
Application
 |  |  |
